Store: Audio Codec Shield

All Open Music Labs products are available through SYNTHCUBE. We no longer take orders from this site, and are keeping it online for reference only. If you happen to have interest in a retired product, feel free to email us at questions@openmusiclabs.com, as we might have a few parts kicking around the shop.


Audio Codec Shield – 39$
BUY AT SYNTHCUBE

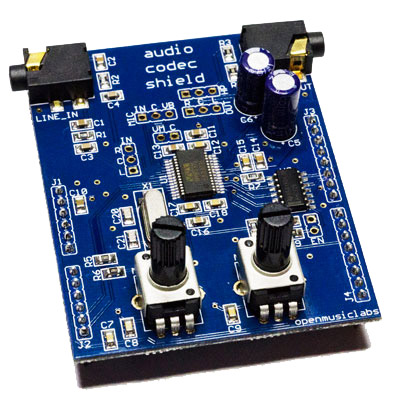

This fully assembled Audio Codec Shield mounts on top of your Arduino Duemilanove, Uno, or Leaflabs Maple. Arrives ready to use!

The Audio Codec Shield is an Arduino shield that sports the same Wolfson WM8731 codec as the MICrODEC (capable of stereo sample rates at 44.1/16b and beyond!). The shield has 1/8″ stereo input and headphone output jacks, a single pole analog input aliasing filter, and 2 potentiometers for varying parameters in your code.

- 1 Fully assembled Audio Codec Shield


Audio Codec Shield Kit – 18$
BUY AT SYNTHCUBE

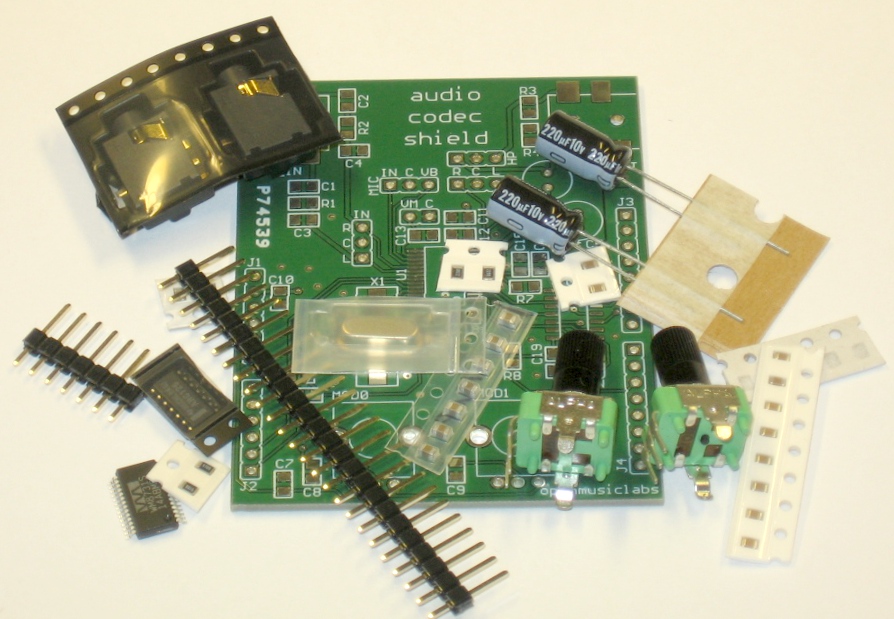

This kit comes with all the parts you will need to assemble a fully functional Audio Codec Shield. It comes with jacks, pots, headers, passives and ICs. This kit is mostly 0805 surface mount. PCB is now included with this kit.

- 1 Complete kit of parts for an Audio Codec Shield
- 1 PCB


Audio Codec Shield Bare PCBRETIRED

Don’t want all those extra knobs, jacks, and headers? Make your own Codec Shield! Make it small, and fit it into your own stompbox. We have a lot of these left over, so feel free to contact us about quantity discounts.

- 1 Unpopulated Audio Codec Shield PCB
